SYS-221BT-HNTR - 2U - 4 Nodes BigTwin SuperServer
Prices plus VAT plus shipping costs
Delivery time 4 Weeks
- Order number: SYS-221BT-HNTR
sysGen/SUPERMICRO Server SYS-221BT-HNTR, Mainboard Super X13DET-B
Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2).
Applications
- High-Performance File System
- Diskless HPC Clusters
- Scale Out All-Flash NVMe Storage
- All-Flash NVMe Hyperconverged Infrastructure
Features

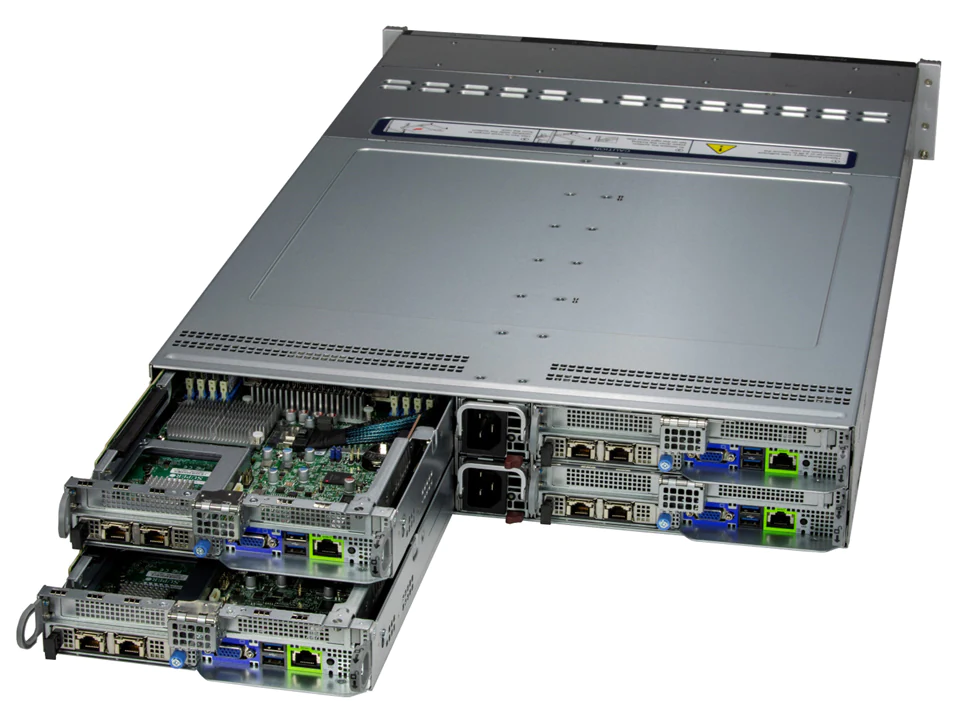

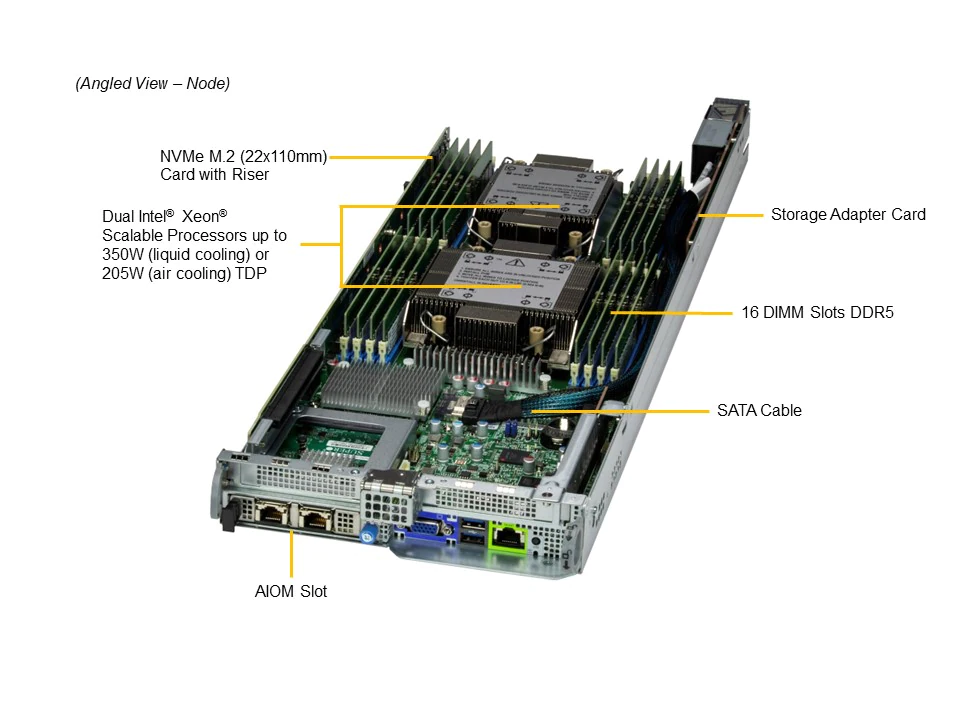

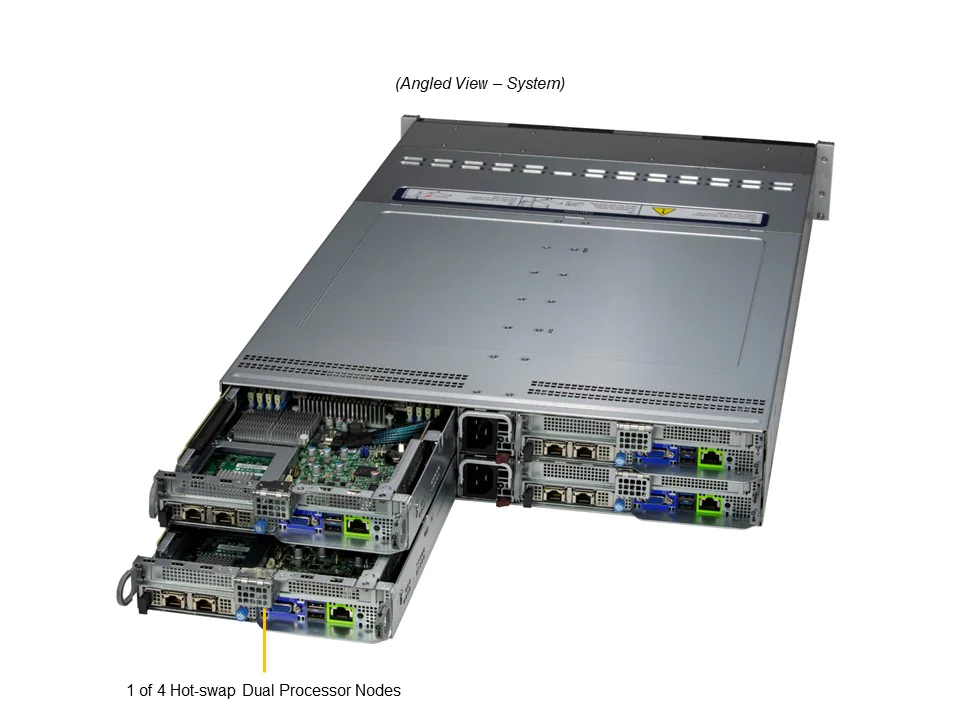

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
- Dual Socket E (LGA-4677) 4th Gen Intel® Xeon® Scalable Processors
- 16x DIMM slots up to 4TB Registered ECC DDR5-4800MHz

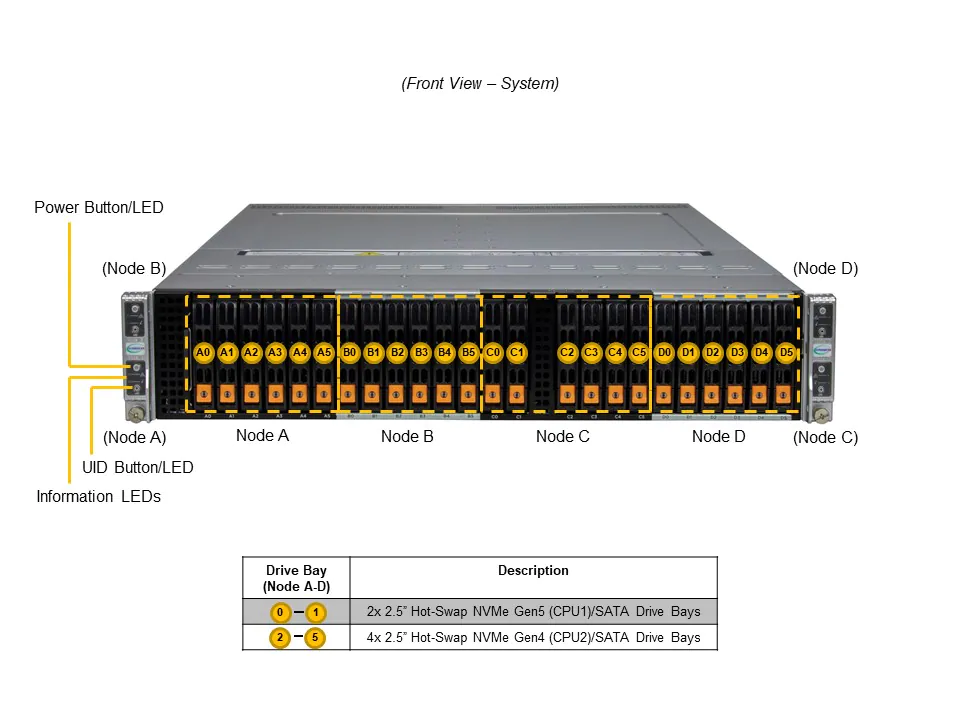

- 6x 2.5" hot-swap NVMe/SATA drive bays ( 2x PCIe 5.0 NVMe and 4x PCIe 4.0 NVMe/SATA)
2x M.2 with PCIe Gen4 x4 interface 2280/22110 - 2x PCIe 5.0 x16 (LP) slots
- Network connectivity via AIOM (OCP 3.0 compliant)
- 4 cooling fans per 2U enclosure, 16K RPM; Shared Cooling Design, Counter-Rotating

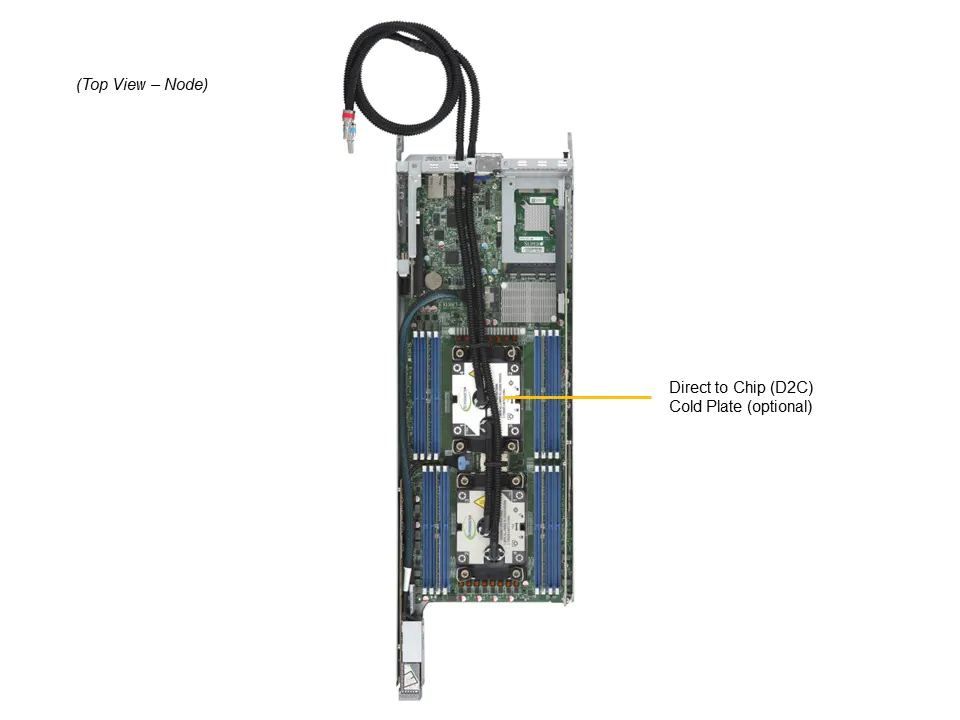

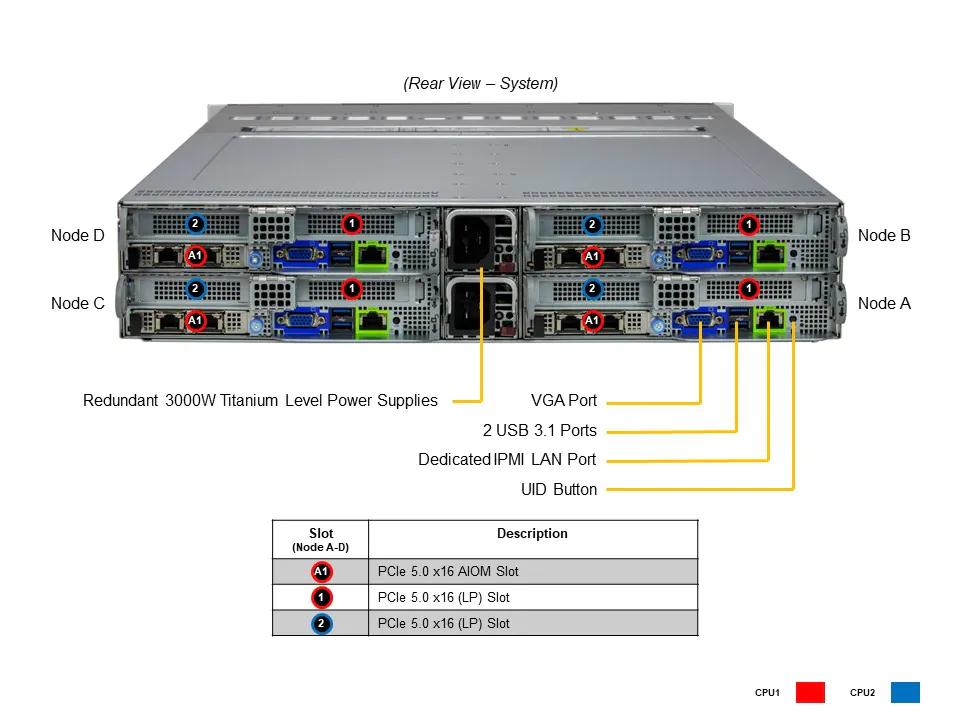

Liquid Cooling Support - 3000W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
NOTE: Supports up to 205W TDP CPUs (Aircooled)*
Supports up to 350W TDP CPUs (Liquid Cooled)
CPUs (air cooled) with TDP over 205W are only supported under specific conditions.
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 28.74 (730mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Sapphire Rapids (4.Gen) |
| DIMM Slots: | 64 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 24 |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Number of Nodes per System: | 4 Nodes |
| PCIe Slots: | 8 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
| Applications: | Cloud Computing, Data Center, HCI, HPC |
| Case Depth: | 28.74 (730mm) |
| CPU Socket: | Dual Socket |
| CPU Type: | Intel Xeon Scalable Sapphire Rapids (4.Gen) |
| DIMM Slots: | 64 DIMMs |
| Drive Bays Form Factor: | 2.5", M.2 |
| SSDs/HDDs: | 24 |
| Form Factor: | 2U |
| Max. GPU Count: | N/A |
| On-board Network: | N/A |
| Number of Nodes per System: | 4 Nodes |
| PCIe Slots: | 8 PCIe Slots |
| Redundant Power Supply: | Redundant Power Supply incl. |
| Remote Management: | Remote Management incl. |
| Special Features: | Complete System Only |
| Storage Interface: | NVMe (native), SATA (native) |
| System Type: | High Density Server (Twins, Blades) |
